Epoxy Filament Wound Tubes for Lithium-ion Battery Copper Foil Winding Cores

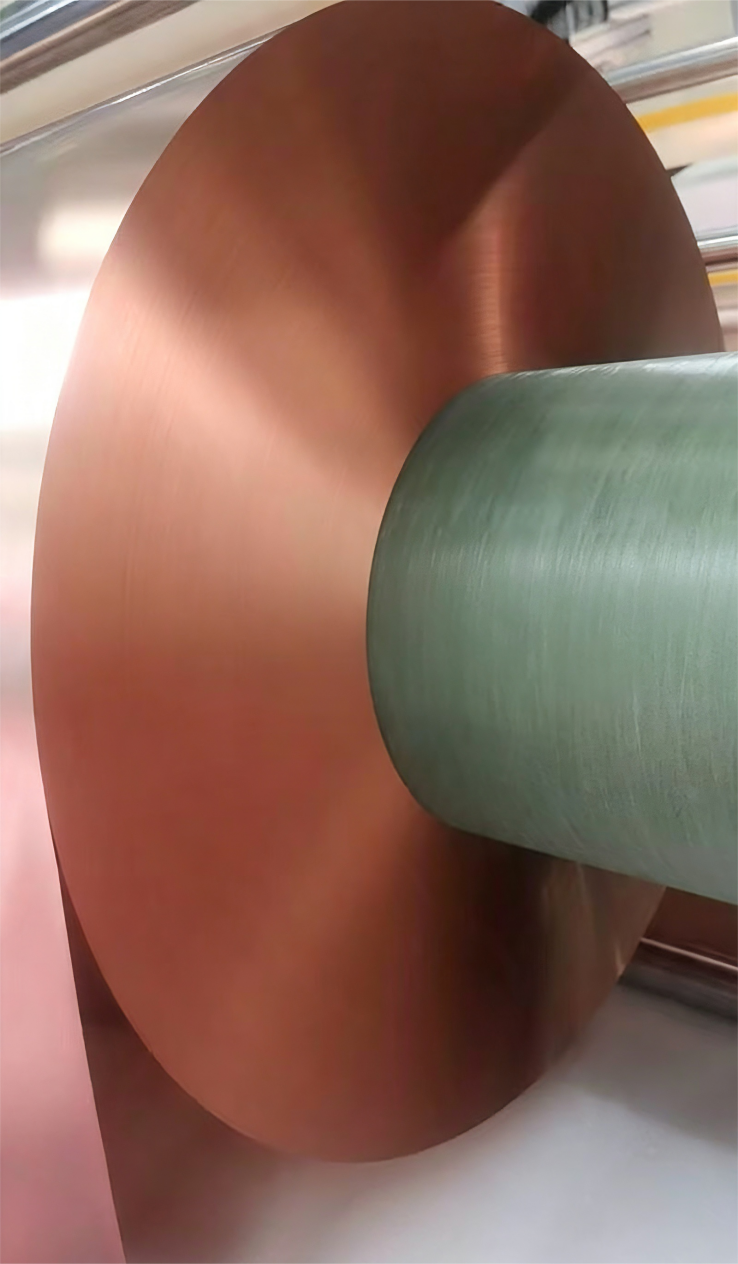

In lithium-ion battery manufacturing, the copper foil winding core plays a critical role in ensuring stable, accurate, and efficient production. During high-speed winding processes, the core must maintain excellent dimensional accuracy, surface smoothness, mechanical strength, and long-term reliability to prevent foil deformation, tension fluctuations, and production interruptions.

Epoxy filament wound tubes are specifically designed to meet these demanding requirements. With outstanding dimensional stability and a smooth surface finish, they maintain consistent winding tension and protect copper foil quality throughout continuous production.

Why Epoxy Filament Wound Tubes Are Ideal for Copper Foil Winding Applications

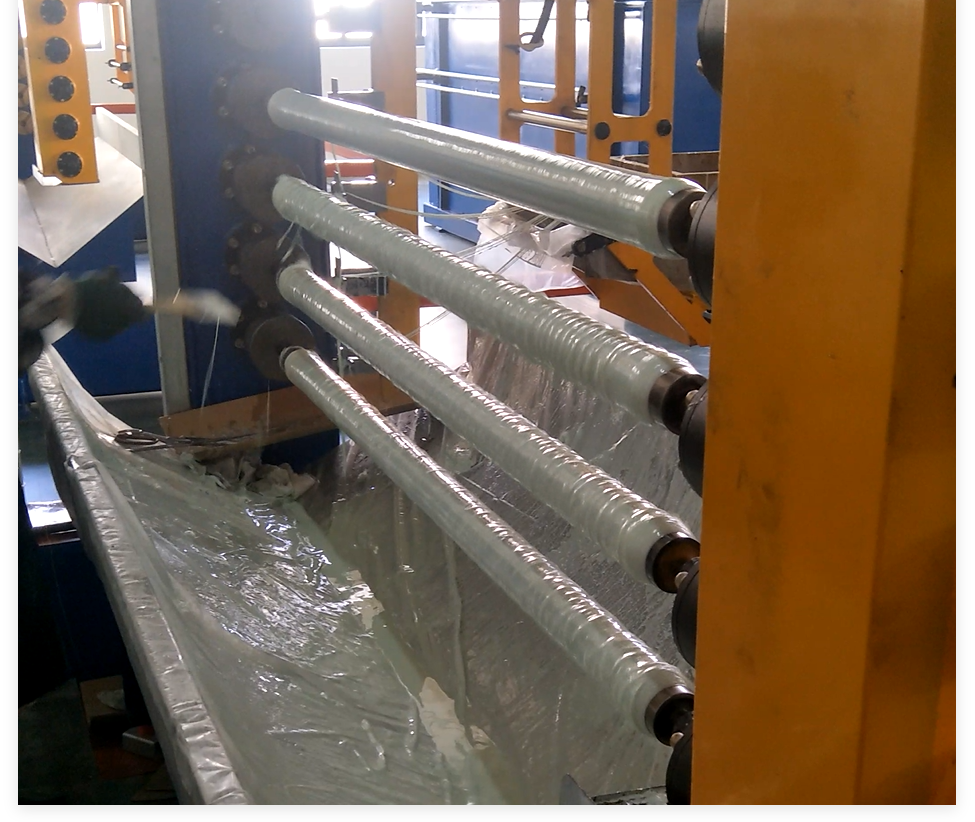

Filament winding technology builds strength through the precise placement of continuous reinforcing fibers. High-strength fibers, such as fiberglass or carbon fiber, are fully impregnated with epoxy resin and wound around a precision mandrel according to controlled winding angles, tension levels, and layer structures. After curing and machining, it is a seamless composite tube with optimized mechanical properties.

The continuous fibers provide outstanding tensile strength, compression resistance, and bending toughness, while the epoxy matrix securely bonds the fibers together, distributes stress evenly, and protects the structure from moisture, chemicals, and abrasion.

This fiber-reinforced design enables the tube to maintain stable performance during continuous high-speed operation, reducing the risk of cracking, deformation, and unexpected failure.

Key Advantages for Battery Manufacturing Equipment

1. Excellent Dimensional Stability and Surface Smoothness

Epoxy filament wound tubes maintain accurate dimensions under long-term operation, ensuring reliable copper foil winding performance and minimizing product defects caused by uneven tension or mechanical deformation.

2. High Strength with Lightweight Construction

Compared with traditional metal cores, epoxy filament wound tubes provide high mechanical strength while significantly reducing weight. The lightweight design helps reduce equipment load, improve handling efficiency, and support faster production processes.

3. Superior Electrical Insulation Performance

The combination of epoxy resin and fiberglass provides excellent electrical insulation, low dielectric loss, and non-conductive performance. These properties make the tubes suitable for applications where electrical safety and insulation reliability are required.

4. Outstanding Corrosion and Chemical Resistance

Epoxy filament wound tubes do not rust or oxidize. They maintain stable performance when exposed to moisture, oils, acids, alkalis, and other industrial chemicals, making them suitable for demanding manufacturing environments.

5. Customizable Mechanical Properties

Through adjustments in fiber type, winding angle, and layer structure, the tube performance can be customized to meet specific application requirements, including higher axial strength, improved hoop resistance, and enhanced bending stiffness.

RDS Composites provide high-performance epoxy filament wound tubes tailored for lithium-ion battery copper foil winding and other applications. Our composite solutions deliver excellent dimensional stability, mechanical strength, surface smoothness, electrical insulation, and corrosion resistance to ensure reliable performance in demanding production environments. By offering customized designs, professional technical support, and consistent product quality, we help global customers improve equipment efficiency, reduce downtime, and achieve long-term manufacturing reliability.
